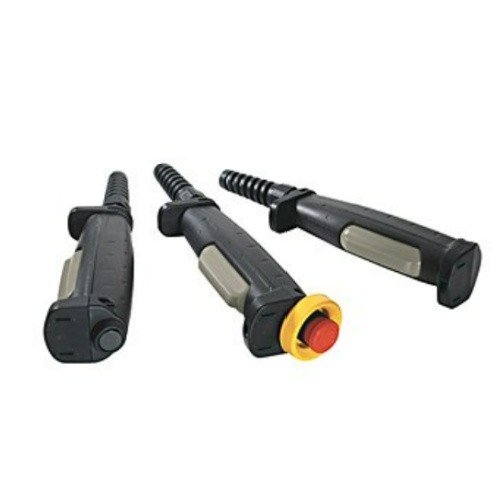

Grip Enabling Switches

Our Grip Switches can be used as part of the conditions required to allow safe working inside a machine guard. They are lightweight and ergonomically designed for easy use. The standard model includes two independent three-position switches which are actuated by squeezing the trigger. Additional models are available with an optional jog button or dual channel E-stop button.

Overview

Dual three-position enabling switches
Lightweight and ergonomic
Optional jog and E-stop functions

Product Selection

440J GripSwitch

Catalog Number	Description	Accessories
440J-N21TNPM	Grip Switch (No Additional Buttons), 2 N.C. Main Contacts, 2 N.O. Monitoring Contacts, 8 Point Terminal Chamber with M20 Conduit & Cable Strain Relief
440J-N21TNPM-NP	Grip Switch with Jog Pushbutton, 2 N.C. Main Contacts, 2 N.O. Monitoring Contacts, 1 N.O. Jog Contact, 8 Point Terminal Chamber with M20 Conduit & Cable Strain Relief
440J-N2NTNPM-NE	Grip Switch with E-Stop Pushbutton, 2 N.C. Main Contacts, 2 N.C. E-Stop Contacts, 8 Point Terminal Chamber with M20 Conduit & Cable Strain Relief

440J Grip Switch Accessories

Catalog Number	Description	Accessories
440J-A00N	440J-A00N, Mounting bracket suitable for single enabling switch
440J-A01N	440J-A01N, Mounting bracket suitable for one actuator mounted onto switch Includes four flat head screws and one Resistorx bit
440J-A02N	440J-A02N, Mounting bracket suitable for single enabling switch and single safety switch
440J-A03N	440J-A03N, Mounting bracket suitable for two actuators mounted onto switch
440J-A04N	440J-A04N, Mounting bracket suitable for single enabling switch and two safety switches
440J-A10N	440J-A10N, NBR/PVC (silicone free) rubber boot kit
