Kinetix 5100 Servo Drives--Safety Motion Control

Kinetix 5100 Servo Drives--Safety Motion Control

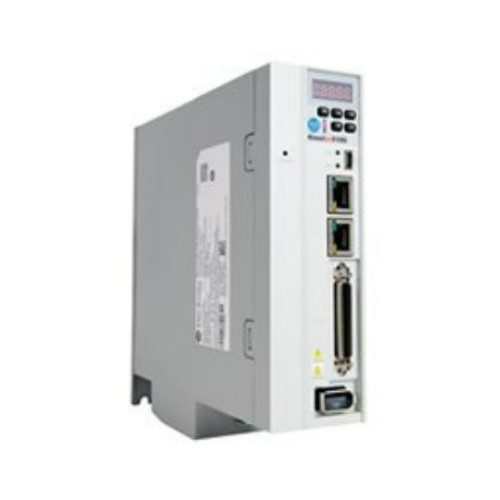

Our B 2198 Kinetix® 5100 Servo Drives provide a scalable option for servo solution in a single product. This drive offers an extended power range solution to 15kW to support stand-alone, Micro 800, or Logix controlled applications. Kinetix 5100 drives come with standard inputs and outputs, different mode of controls, plus Safe Torque Off and dual port EtherNet/IP for various network topologies.

Overview

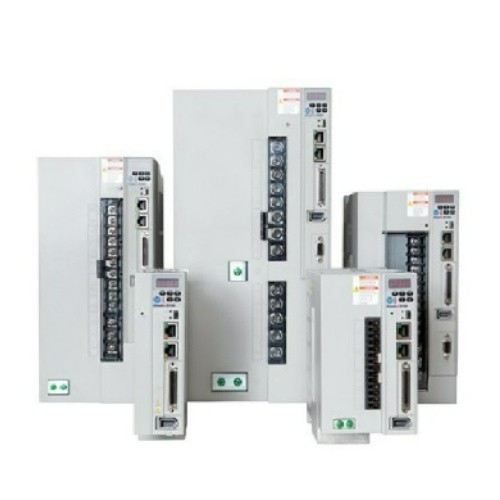

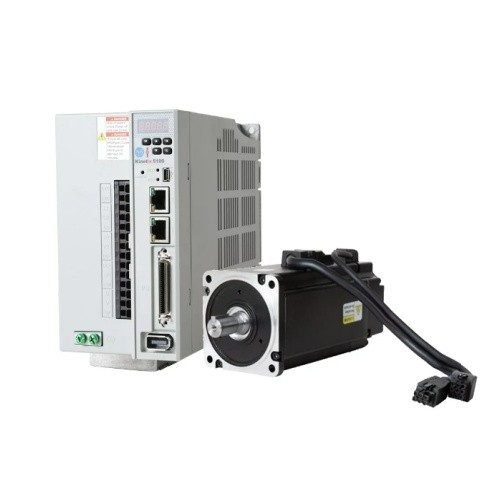

Designed for versatility, Kinetix 5100 Servo Drives provide a broad range of power options to fit your unique application needs. They can provide a cost-efficient solution to achieving flexible machines that meet growing consumer demands for personalized goods and more product variety. These servo drives are optimized for pairing with Kinetix TLP Motors to enhance your ability to deliver complete motion solutions that are right-sized for small to medium machines.

Product Selection

Catalog Number	Description
2198-E1004-ERS	Kinetix 5100 Servo Drive, 0.4 kW @ 230V AC (single-phase or three-phase), 0.2 kW @ 120V AC (single-phase)
2198-E1007-ERS	Kinetix 5100 Servo Drive, 0.75 kW @ 230V AC (single-phase or three-phase), 0.375 kW @ 120V AC (single-phase)
2198-E1015-ERS	Kinetix 5100 Servo Drive, 1.5 kW @ 230V AC (single-phase or three-phase), 0.75 kW @ 120V AC (single-phase)
2198-E1020-ERS	Kinetix 5100 Servo Drive, 2.0 kW @ 230V AC (single-phase or three-phase), 1.0 kW @ 120V AC (single-phase)
2198-E2030-ERS	Kinetix 5100 Servo Drive, 3.0 kW @ 230V AC (three-phase)
2198-E2055-ERS	Kinetix 5100 Servo Drive, 5.0 kW @ 230V AC (three-phase)
2198-E2075-ERS	Kinetix 5100 Servo Drive, 7.5 kW @ 230V AC (three-phase)
2198-E2150-ERS	Kinetix 5100 Servo Drive, 15.0 kW @ 230V AC (three-phase)
2198-E4004-ERS	Kinetix 5100 Servo Drive, 0.4 kW @ 480V AC (three-phase)
2198-E4007-ERS	Kinetix 5100 Servo Drive, 0.75 kW @ 480V AC (three-phase)
2198-E4015-ERS	Kinetix 5100 Servo Drive, 1.5 kW @ 480V AC (three-phase)
2198-E4020-ERS	Kinetix 5100 Servo Drive, 2.0 kW @ 480V AC (three-phase)
2198-E4030-ERS	Kinetix 5100 Servo Drive, 3.0 kW @ 480V AC (three-phase)
2198-E4055-ERS	Kinetix 5100 Servo Drive, 5.5 kW @ 480V AC (three-phase)
2198-E4075-ERS	Kinetix 5100 Servo Drive, 7.5 kW @ 480V AC (three-phase)
2198-E4150-ERS	Kinetix 5100 Servo Drive, 15.0 kW @ 480V AC (three-phase)
