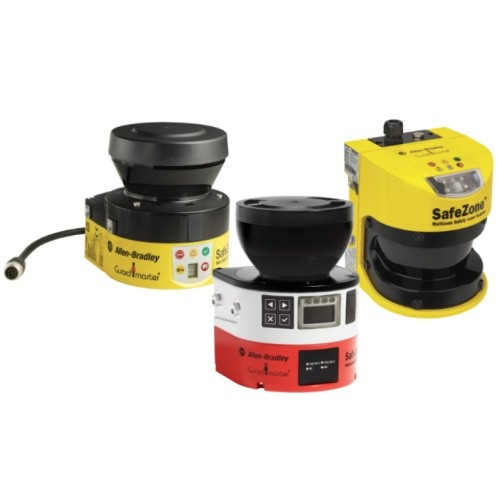

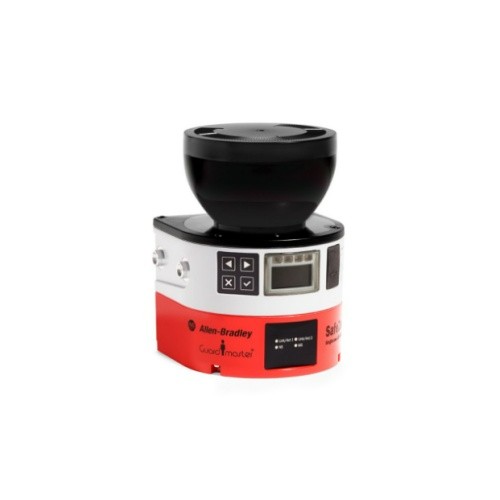

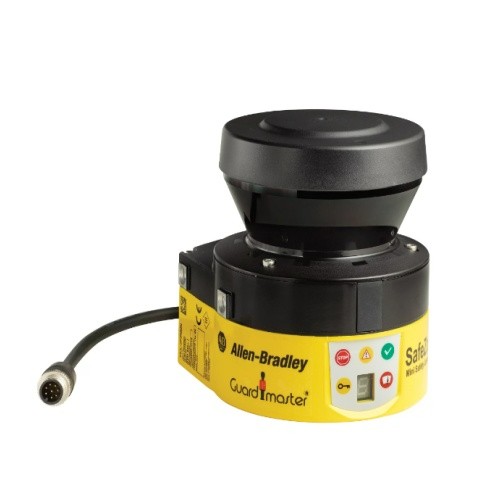

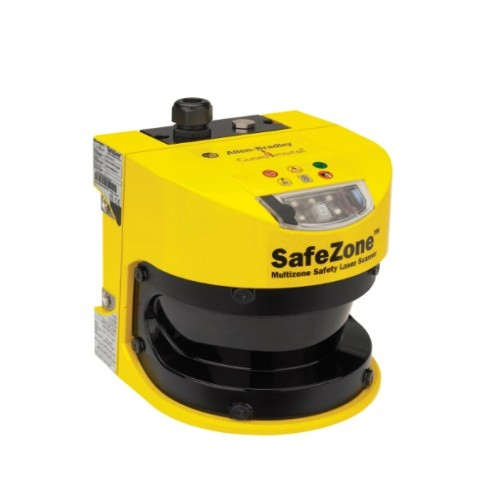

Our SafeZone Safety Laser Scanners are compact devices that have switchable, configurable fields and field sets (warning and safety). The Safety Configuration and Diagnostic (SCD) Windows®-based software, which is used to configure the SafeZone Singlezone, Multizone and Mini simplifies the programming of the SafeZone safety laser scanners. The SafeZone 3 uses the 442L AOP to configure both the EtherNet/IP connection and as well as programming of the scanner.
Offers 190° or 270° scan angles
Provides 2, 3, 4, or 5 m (6.56, 9.84, 13.12, or 16.4 ft) safety field ranges
Includes configurable resolutions 30...150 mm (1.18...5.9 in.)
Provides configurable restart delay
Offers horizontal or vertical mounting
Includes seven segment display for diagnostic information
Offers multiple sampling (2...16 units)
Typical applications for our SafeZone safety laser scanners include:
Personnel detection in front of a machine or equipment hazards
Safety replacement when irregular shaped safety mats are required
AGV applications, two warning fields can gradually slow the AGV thus reducing brake wear
| ATTRIBUTE | SAFEZONE (SINGLEZONE AND MULTIZONE) | SAFEZONE MINI | SAFEZONE 3 |
|---|---|---|---|
| Scan Angle | 190° (-5…+185°) | 270° (-45…+225°) | 275° (-47.5…+227.5°) |
| Protective Field Range | Singlezone: 4 m (13.12 ft); Multizone: 5 m (16.4 ft) | 2 m, 3 m (6.56 ft, 9.84 ft) | 5.5 m (18.04 ft) |
| Resolution | 30...150 mm (1.18...5.9 in.) | 30...150 mm (1.18...5.9 in.) | 30…200 mm (1.18...7.87 in.) |
| Response Time | ≥ 60 ms or ≥ 120 ms | ≥ 80 ms | ≥ 95 ms |
| Restart Delay | 2…60 seconds | 2…60 seconds | 2…60 seconds |
| Mounting | Horizontal, vertical, upside down | Horizontal, vertical, upside down | Horizontal, vertical, upside down |
| Display | 7 segments | 7 segments | Multi-colored text and symbols |
| Sampling | 2...16 scans | 2...16 scans | 2...16 scans |
| Outputs | 2 OSSD | 2 OSSD | 4 Safety Bits |
| Protocol | N/A | N/A | CIP Safety over EtherNet/IP |
| Configuration | SCD software | SCD software | 442L AOP |
