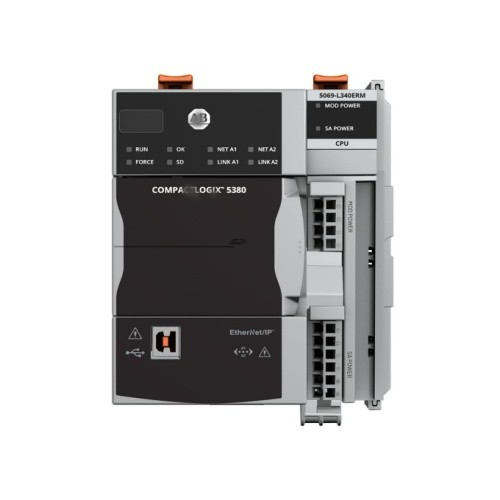

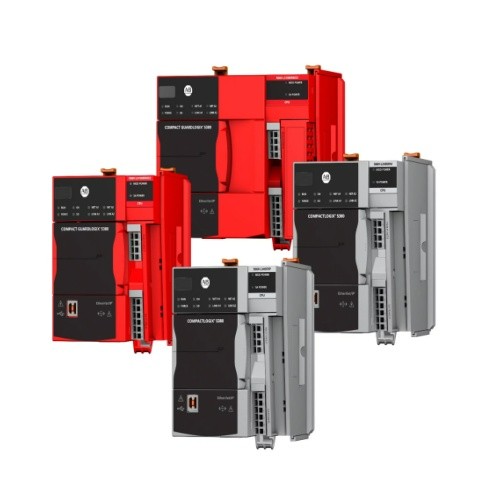

CompactLogix and Compact GuardLogix 5380 Controllers

CompactLogix and Compact GuardLogix 5380 Controllers

Our 5380 controllers provide higher performance, increased capacity, improved productivity and enhanced security to help meet the growing demands of smart machines and equipment for manufacturing. All standard and safety controllers use a modern programming environment, Studio 5000 Logix Designer application, to allow users to work collaboratively to design and maintain their systems. This common environment optimizes efficiency, reduces time to commission and manages integrated motion over EtherNet/IP™ for high-speed motion applications and up to SIL 3/PLe safety solutions. These controllers are ideal for applications requiring high-performance communications, I/O and motion control for up to 32 axes.

Overview

Ideal for small to large applications that require low axis motion and I/O point counts

Enable high-speed I/O, motion control, Device Level Ring and Linear topologies

Offer a 1 gigabit (Gb) embedded EtherNet/IP port that enables CIP safety connections, I/O and safety devices

Include dual configurable ports that support Dual-IP address

Provide enhanced diagnostics and troubleshooting with controller status and fault display

Offer controller functions optimized for maximum system performance

Offer enhanced security features that include controller-based change detection, logging, encrypted firmware and role-based access control to routines and Add-On Instructions

Support up to 31 local 5000 I/O modules

Offer integrated motion on EtherNet/IP up to 32 axes

Offer a wide range of memory options from 0.6...10 MB

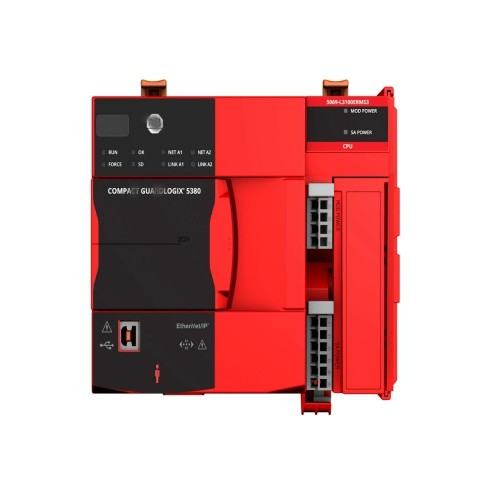

Compact GuardLogix 5380 safety controllers

Achieve up to SIL 2/PLd with 1oo1 architecture or up to SIL 3/PLe with 1oo2 architecture

Offer standard memory options from 0.6…10 MB

Offer safety memory options from 0.3…5 MB

Offer 1 gigabit (Gb) embedded Ethernet port

Support communication options for up to 180 EtherNet/IP nodes

Offer conformal coated options for harsh environments

Provide single controller/software/network for standard and safety control

Ability to mix and match safety and standard I/O

Provide integrated safety functions with drives and motion

Ability to connect with scaled HMI options from PanelView 800 graphic terminals

5380 Process controllers

Ideal for industries such as Food & Beverage, Oil & Gas, Chemical, Plastics, Life Sciences, Metals & Mining

Incorporates standard controller functionality with motion capability and conformal coating option

Provides tight integration with PlantPAx 5.0 system, which reduces the need to import Add-On InstructionEnables user to subscribe and receive diagnostic information through FactoryTalk View Site Edition without additional programming.

Catalog Number	Description
5069-AENTR	5069 I/O Slim EtherNet/IP Adapter
5069-AENTRK	5069 I/O Slim EtherNet/IP Adapter,Conformal Coated
5069-AEN2TR	5069 I/O EtherNet/IP Adapter
5069-IY4	5069 I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module
5069-IF8	5069 I/O 8 Channel Voltage/Current Analog Input Module
5069-OF4	5069 I/O 4 Channel Voltage/Current Analog Output Module
5069-OF8	5069 I/O 8 Channel Voltage/Current Analog Output Module
5069-IB8S	5000 8 Channel 24VDC Safety Input Module
5069-IB8SK	5000 8 Channel 24VDC Safety Input Module - Conformally Coated
5069-IB16K	5069 I/O 16 Channel 24V DC Sink Input Module,Conformal Coated
5069-IA16	5069 I/O 16 channels AC input modules, supporting both 120 & 240 VAC signals
5069-IB16	5069 I/O 16 Channel 24V DC Sink Input Module
5069-IB16F	5069 I/O 16 Channel Fast 24V DC Sink Input Module
5069-IB6F-3W	5069 I/O 6 Channel 3 Wire Fast 24V DC Sink Input Module
5069-OA16	5069 I/O 16 channels AC output module supporting both 120 & 240VAC output.
5069-OB8	5069 I/O 8 channels high current 2A discrete output.
5069-OBV8S	5000 8 Channel 24VDC Safety Configurable Output Module
5069-OBV8SK	5000 8 Channel 24VDC Safety Configurable Output Module - Conformally Coated
5069-OB16	5069 I/O 16 Channel 24V DC Source Output Module
5069-OB16F	5069 I/O 16 Channel Fast 24V DC Source Output Module
5069-OB16K	5069 I/O 16 Channel 24V DC Source Output Module,Conformal Coated
5069-IY4K	5069 I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module,Conformal Coated
5069-OF4K	5069 I/O 4 Channel Voltage/Current Analog Output Module,,Conformal Coated
5069-OW4I	5069 I/O 4 Channel Normally open individually isolated type Relay Output Module
5069-OW16	5069 I/O 16 channels non isolated normally open relay output module.
5069-OX4I	5069 I/O 4 Channel Normally open/Normally Closed individually isolated type Relay Output Module
5069-HSC2XOB4	5069 I/O 2 Channel High Speed Counter Module with 4 Channel 24V DC Source Outputs
5069-ARM	5069 I/O Address Reserve Module
5069-L306ER	5380, 600 KB User Memory, 8 I/Os, 16 EtherNet/IP Devices
5069-L310ER	5380, 1 MB User Memory, 8 I/Os, 24 EtherNet/IP Devices
5069-L320ER	5380, 2 MB, 16 I/Os, 40 EtherNet/IP Devices
5069-L320ERP	5380 Controller, 2 MB, 16 I/Os, 8 axis, 40 nodes, Process, Conformal Coated
5069-L330ER	5380, 3 MB User Memory, 31 I/Os, 60 EtherNet/IP Devices
5069-L340ER	5380, 4 MB User Memory, 31 I/Os, 90 EtherNet/IP Devices
5069-L340ERP	5380 Controller, 4 MB, 31 I/Os, 20 axis, 90 nodes, Process, Conformal Coated
5069-L310ER-NSE	5380, 1 MB User Memory, 8 I/Os, 24 EtherNet/IP Devices, No Super Cap
5069-L306ERM	5380, 600 KB User Memory, 8 I/Os, 2 axis, 16 EtherNet/IP Devices
5069-L310ERM	5380, 1 MB User Memory, 8 I/Os, 4 axis, 24 EtherNet/IP Devices
5069-L310ERMK	5380, 1 MB User Memory, 8 I/Os, 4 axis, 24 EtherNet/IP Devices, Conformally Coated
5069-L320ERM	5380, 2 MB, 16 I/Os, 8 axis, 40 EtherNet/IP Devices
5069-L320ERMK	5380 Controller, 2 MB, 16 I/Os, 8 axis, 40 nodes, Standard, Conformal Coated
5069-L330ERM	5380, 3 MB User Memory, 31 I/Os, 16 axis, 60 EtherNet/IP Devices
5069-L330ERMK	5380 Controller, 3 MB, 31 I/Os, 16 axis, 60 nodes, Standard, Conformal Coated
5069-L340ERM	5380, 4 MB User Memory, 31 I/Os, 20 axis, 90 EtherNet/IP Devices
5069-L350ERM	5380, 5 MB User Memory, 31 I/Os, 24 axis, 120 EtherNet/IP Devices
5069-L350ERMK	5380 Controller, 5 MB, 31 I/Os, 24 axis, 120 nodes, Standard, Conformal Coated
5069-L380ERM	5380, 8 MB User Memory, 31 I/Os, 28 axis, 150 EtherNet/IP Devices
5069-L3100ERM	5380, 10 MB User Memory, 31 I/Os, 32 axis, 180 EtherNet/IP Devices
5069-L306ERS2	5380, SafetySIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os
5069-L310ERS2	5380 Safety, SIL2/PLd, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os
5069-L320ERS2	5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os
5069-L330ERS2	5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os
5069-L340ERS2	5380 Safety, SIL2/PLd, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os
5069-L350ERS2	5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os
5069-L380ERS2	5380 Safety, SIL2/PLd, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os
5069-L3100ERS2	5380 Safety, SIL2/PLd, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os
5069-L306ERMS2	5380 Safety, SIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os, 2 axis
5069-L310ERMS2	5380 Safety, SIL2/PLd, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis
5069-L320ERMS2	5380 Safety SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis
5069-L330ERMS2	5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis
5069-L340ERMS2	5380 Safety, SIL2/PLd, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os, 20 axis
5069-L350ERMS2	5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis
5069-L380ERMS2	5380 Safety, SIL2/PLd, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os, 28 axis
5069-L3100ERMS2	5380 Safety, SIL2/PLd, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os, 32 axis
5069-L320ERS2K	5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, Conformal Coated
5069-L320ERMS2K	5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis , Conformal Coated
5069-L330ERS2K	5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, Conformal Coated
5069-L330ERMS2K	5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis,Conformal Coated
5069-L350ERS2K	5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, Conformal Coated
5069-L350ERMS2K	5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis, Conformal Coated
5069-L306ERMS3	5380 Safety Controller, SIL3/PLe, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os, 2 axis
5069-L310ERMS3	5380 Safety Controller, SIL3/PLe, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis
5069-L310ERMS3K	5380 Safety Controller, SIL3/PLe, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis - Conformally Coated
5069-L320ERMS3	5380 Safety Controller, SIL3/PLe, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis
5069-L320ERMS3K	5380 Safety Controller, SIL3/PLe, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis - Conformally Coated
5069-L330ERMS3	5380 Safety Controller, SIL3/PLe, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis
5069-L330ERMS3K	5380 Safety Controller, SIL3/PLe, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis - Conformally Coated
5069-L340ERMS3	5380 Safety Controller, SIL3/PLe, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os, 20 axis
5069-L350ERMS3	5380 Safety Controller, SIL3/PLe, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis
5069-L350ERMS3K	5380 Safety Controller, SIL3/PLe, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis - Conformally Coated
5069-L380ERMS3	5380 Safety Controller, SIL3/PLe, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os, 28 axis
5069-L3100ERMS3	5380 Safety Controller, SIL3/PLe, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os, 32 axis
5069-L430ERMW	03 MB User Memory, USB Port, 1GB Ethernet port, 60 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, 31 I/Os, 16 axis, Windows 10 IoT, 64GB SSD
5069-L450ERMW	05 MB User Memory, USB Port, 1GB Ethernet port, 120 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, Windows 10 IoT, 31 I/Os, 24 axis, 64GB SSD
5069-L4100ERMW	10 MB User Memory, USB Port,1GB Ethernet port, 180 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, Windows 10 IoT, 31 I/Os, 32 axis, 64GB SSD
5069-L4200ERMW	20 MB User Memory, USB Port, 1GB Ethernet port,250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, 31 I/Os, 150 axis, Windows 10 IoT, 64GB SSD
