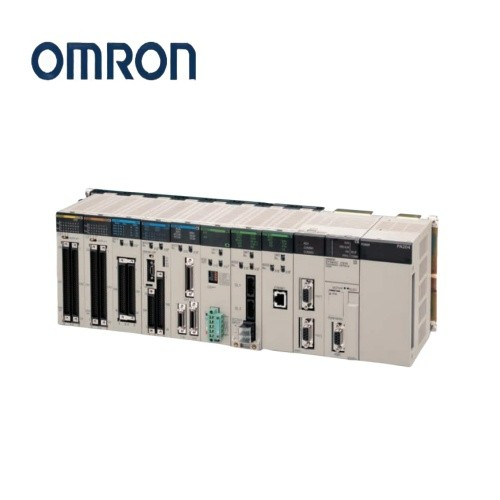

Omron CS1G, CS1H PLC

High controller performance

High-speed controllers that can provide the performance required to meet the needs of facilities with production capacity that can meet sudden changes in demand, or machinery and equipment that is significantly different from that manufactured by competitors in the market, are needed.

The SYSMAC CS1 PLC features high I/O responsiveness and data control functions that dramatically reduce processing time and control the movement of machinery and equipment with greater precision.

Up to 960 points can be controlled when the unit is mounted to the CPU unit

The CS1 improves advanced space efficiency. You can control up to 960 I/O points by simply mounting 10 Basic I/O Units (96 I/O points each) to the CPU Unit. Alternatively, up to 80 analog I/O points can be controlled by holding down five analog input units and five analog output units.

Improved data linking, remote I/O communication, and protocol macro refresh functions

Large-capacity CPU unit allows for additional component control power supplies

Each CS1 CPU Unit enjoys an outstanding capacity of up to 5,120 I/O points, 250K steps of programming, 448 data memories (including extended data memory), and 4,096 timer/counters. Thanks to its large programming capacity, the CS1 PLC is not only suitable for large systems, but can also easily handle value-added applications and other advanced data processing.

System bus communication speed doubled

Reduced cycle time variation during data processing

Improved instruction execution speed and overall performance

CS1 dual system with facility and equipment reliability
