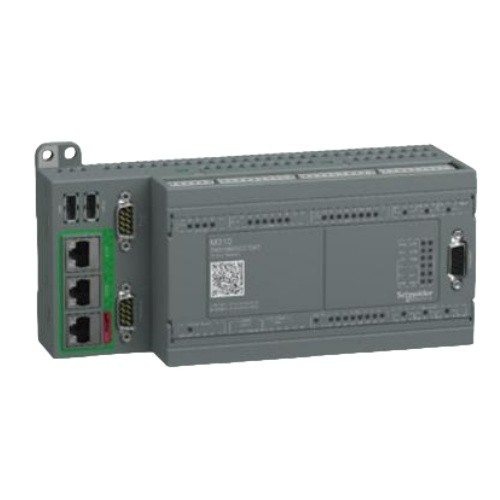

Modicon M310

The Modicon M310 is a high-performance EhterCAT controller based on the Intel X86 hardware platform and the Codesys V3.5 SP19 software platform. It is available in models with up to 16, 32 and 64 axes of synchronized control.

Characterization

High Performance

CPU processing speed: 3.3 ns/single instruction

Synchronized control cycle: 16 axes/250us, 32 axes/0.5ms, 64 axes/1ms

Software Platform

Developed on Codesys 3.5 SP19.

Complies with PLCopen and IEC-61131-3 standards.

Supports motion control functions and function block packaging

Programming languages LD/IL/FBD/ST/SFC/CFC are supported.

Local IO

18 input points (8 high-speed digital inputs / 6 probe inputs / 4 single-ended counter inputs)

8-point output (8 high-speed digital outputs)

Embedded Functions

2 independent Gigabit RJ45 Ethernet ports supporting EtherNet/IP, Modbus TCP

1 100 Gigabit RJ45 EtherCAT port

2 serial ports (1 RS485 and 1 RS232C) supporting Modbus RTU/ASCII masters and Modbus RTU slaves

1 CANopen master port, max. operating frequency 1 Mbps

1 spindle encoder input / 2 incremental encoder inputs

Advantages

High performance

High-performance EtherCAT motion control solution and rich network communication.

High efficiency

Saves time during commissioning and maintenance.

Flexibility

Increase flexibility in logic control and motion control applications with embedded communication interfaces such as Ethernet ports, CANopen ports and EtherCAT ports.

Applications

Automotive and electrification

Machine control

Food & Beverage
