Zelio Logic

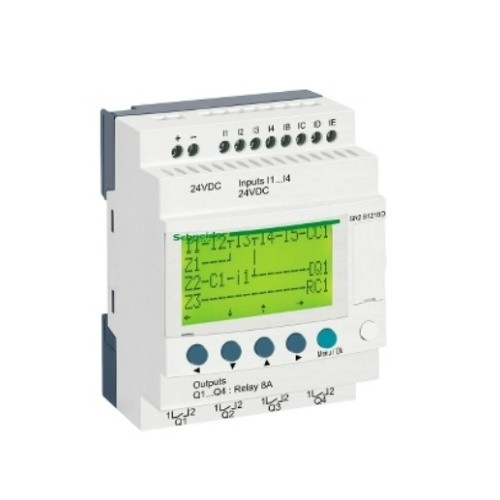

About Zelio Logic Smart Relays

Designed to manage simple automation systems, Zelio Logic Smart Relays offer a real alternative to wired logic or card-specific based solutions, thanks to their unique combination of price/performance ratio and ease of use.

Zelio Logic offers you the choice of two series: a compact version with a fixed configuration and a modular version with expansion modules. Intelligent relays provide PID functionality for HVAC applications and have 2G/3G modem communication capability.

Zelio Logic configuration software Zelio Soft provides tool-free simplified ladder diagram or FBD and SFC language programming for small applications

Product Characteristics

- Modbus or Ethernet communication expansion modules

- 6, 10 or 14 discrete I/O and 4 analog I/O expansion modules

- Compact: up to 26 I/O in 124.6 x 90 x 59 mm

- Supply voltage of the unit: 12 V DC, 24 V DC, 24 V AC, 100.... .240 V AC

- Large backlit LCD display: 4 lines of 18 characters and 1 line of icons, contextual navigation using 6 buttons

- Serial or USB connection cable for smart relay/PC connection

- Connection interface for Bluetooth wireless connection (Smart Relay/PC)

- Zelio Soft 2 intuitive programming software: use programming: Function Block Diagram (FBD): 36 pre-programmed functions, 7 Grafcet functions, 6 logic functions

- Contact language (ladder diagram): 12 pre-programmed functions
