XPSMC, XPSMP, XPSMCM Safety Controllers

Features

Universal security solution

Simultaneous monitoring of several parallel safety functions

> XPSMC is configured by the XPSMCWIN software and runs under Windows.

Safety level: EN13849-1 PLe EN62061 SIL3

Two versions with 16 or 32 inputs

4 (2*2) relay outputs, 6 solid state outputs

30 certified safety functions

PLC communication via Modbus, CANopen, or Profibus.

The XPSMP is configurable from the front panel and can be selected from 15 pre-programmed safety functions.

Safety level: EN13849-1 PLe  EN62061 SIL3

6 (3*2) relay outputs

3 auxiliary solid state outputs

The XPSMCM is configured by SoSafe Configurable software running under Windows.

Safety level: EN13849-1 PLe ;EN62061 SIL3

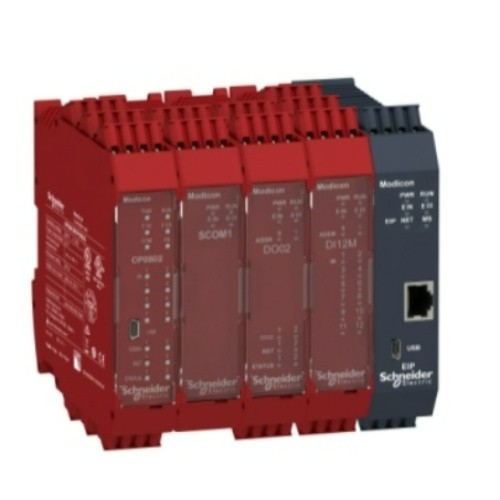

Modular safety controller with 8 safety inputs and 2 safety outputs.

Can be combined with a large number of expansion modules via the backplane expansion bus.

Advantages

 Enhanced safety control for greater peace of mind

Integration of the safety redundancy concept into the microprocessor provides enhanced safety functions.

Flexible selection and combination of safety functions, as well as precise diagnostics
